97 TWO TRACKS RIGID VEHICLES MEDIUM 3

Lynxx LXIV tracked vehicle, from Canada, 99HP Turbo John Deere Mechanical, self-cleaning track design without track guides, Goodyear rubber belts with sealed edges, variety of track/cleat designs and widths for low ground pressure (0.07 kg/cm² minimum), Hydrostatic transmission, Mass 3039 kg, capacity 1814 kg, 22.5 km/h. Many options available like lightweight crane, front mounted snow plow. Its utility will include hauling personnel, fuel, drill rod, and drill rigs between base camps and drill sites. Ice Road Building, forestry practices, Hydro line installation and maintenance, Trail Grooming, Search and Rescue, Natural Disaster remediation, and Highway Development/Maintenance. http://lynxxtechnologies.ca/photos/

OEAMTC Homemade vehicle, 2015. https://fr.pinterest.com/pin/161777811593157997/, http://www.offroad-forum.de/viewtopic.php?t=67952&start=30&postdays=0&postorder=asc&highlight=&sid=1c68f12fbf1751b8305b6ed226c85ca5 .http://www.offroad-forum.de/viewtopic.php?p=1206578&sid=3fea64919f57e86edf4c4727ba7f0349

Ripsaw tracked fast vehicle. http://www.howeandhowe.com/

Tracked Personal Transporter (non-armored) whose tracks and suspensions are issued from a Vickers-Carden-Loyd Light Tank Mk. II of the 30s. http://lunohodov.net/forum/viewtopic.php?t=6259&postdays=0&postorder=asc&start=150 Vickers-Carden-Loyd Light Tank Mk. II B,  https://en.wikipedia.org/wiki/T-13_tank_destroyer

Tracked Unimog U 421. http://www.benzworld.org/forums/unimog/1684179-rubber-tire-tracked-mogs-406-411-a-2.html

Unitrac Unimog. Early Models in the 50s. http://vieilles-soupapes.grafbb.com/t35850-unitrac-l-unimog-a-chenille

Volcano transporter. http://lunohodov.net/forum/viewtopic.php?p=350681, https://www.youtube.com/watch?v=h0xtdPCfE2A

Meili Conservation VM 1500 Wagon for reed. https://translate.google.fr/translate?hl=fr&sl=de&tl=en&u=http%3A%2F%2Fwww.vmeili.ch%2Fmain%2Fp_id%2F560%2Fobj%2F67%2F

nav%2F456%2Fnav2%2F538%2Fnav

3%2F560%2Flang%2F2.html

Tracked Skidder CTL 250 FR for slopes and difficult terrains. It is designed and manufactured in Switzerland by CTL Technology GmbH à Sehmatal. http://www.hsm-forest.net/cms/news-665.html

Tiger rover, http://lunohodov.net/forum/viewtopic.php?t=13209

ATV GW-3 built in 2016 at Irkutsz. Parts are issued from GAZ 71. Mazda RT-F 2 liters engine also automatic hydromechanics transmission. Tracks 500 mm wide were made at Koursk Composite plant. Interconnected air suspension between the 6 wheels with flexibility and load adjustable on axles. Body is made of parts of UAZ-452, 469, UAZ-Hunter,  http://www.drom.ru/bmsh/2016/ticket/3267/,

ATV GW-3 vehicle tracks

Corvair Tank, mid 60s, The transmission is a Corvair Power glide manufactured by G L Bowen & Co, Detroit, Michigan. It is also fitted with 170 hp Corvair engine. The track sections are aluminum and are bolted to a continuous rubber belt. They have rubber pad inserts. Tracks and suspension system are very similar to the Canadair CL-91, with torsion arm springs and some sort of cushion shocks to limit downward travel. http://corvaircenter.com/phorum/read.php?1,735952,736915, http://forums.m29cweasel.com/forums/showthread.php?t=404, http://corvaircenter.com/phorum/read.php?1,735952,page=2

Handmade tank in 2014 built by Steve Hudlow, Georgia. Specs are Twin Turbo 6.0 v8, hand built tracks, suspension, chassis. They even built a 14 bolt/Dana80 Hybrid axle to turn the tracks. http://www.hudlowaxle.com/projects/hudlow-tank-project/

The Swiss Hürlimann tractor, MS 70 hp model in 1938. http://pullingtractorworld.tumblr.com/post/65033373529/steampunkvehicles-during-early-tractor

Land-Tamer vehicle, http://www.suggest-keywords.com/cHJpbm90aCBjYW5hZGE/

Ohara SM20D (left) and SM30D (right) groomer. http://www.farpost.ru/vladivostok/auto/spectech/atv/

Oliver-Cletrac HG OC-3 tractor with tracks fitted with rubber pads. http://www.heavyequipmentforums.com/showthread.php?4216-steep-slopes-on-dozers/page2

Oliver-Cletrac HG OC-3 tractor with tracks fitted with rubber pads. http://www.heavyequipmentforums.com/showthread.php?4216-steep-slopes-on-dozers/page2

Owren Variotrac 912 drilling tractor of 1978. Tryge Owren started his company in 1951. After building wheel-barrows at Vigron, Lillehammer. Owren resolved problems of off-road transportation with its Variotrac 912, mainly for forestry. It was associated with public Administration of road of Norway. This one, for drilling work, is in the region NPRA South in May 2004 and is credited of 3266 hours of work. http://digitaltmuseum.no/021025641218?name=Variotrac&advanced_search=1&pos=0#&gid=1&pid=1

Terranica tracked vehicle, http://vezdehod.com/terranica

Oliver-Cletrac OC-4 and OC-6 Florida Swamp Special with high ground clearance (upper). Below right is the OC-6 crawler, 1956. The HG tractor (picture below) was built until 1951 was and replaced by the OC-3, similar. HG and OC-3 were built from 1939 to 1956 when Oliver introduced the OC-4. In 1960, White Motor Company acquired Oliver Corporation and Minneapolis-Moline in 1963. Due to bankruptcy and after 3 buying back, White Corporation fell into AGCO company (Allis Gleaner Company) which still exits. The last Oliver named tractor was built in Charles City, Iowa, in 1976. From 1954 to 1959, about 1.456 crawlers were built. http://www.farmcollector.com/tractors/oliver-cletrac-hg-68%5C, http://aumannauctions.com/index.php?subp=1&sct=2&pg=ap&pid=1219, http://www.yesterdaystractors.com/cgi-bin/viewit.cgi?bd=oliver&th=106395, http://www.tractorfriends.org/tractorsengines/buddyscrawlers/buddyscrawlers.html

Oliver-Cletrac HG-68 tractor, 1948. It could be ordered with center-to-center track width with 4 dimensions, using the tractor in limited spaces, in row crop work or on steep slopes. These little machines founded many uses in both agriculture and industry. The elevated sprocket of the Oliver-Cletrac HG-68 tractor Hi-Crop, 1949, on right, allowed more ground clearance for cultures. Cleveland Tractor Company, Ohio plant, began in 1911 and built the HG from 1939. Cletrac was bought by Oliver in 1944. https://classicdozers.wordpress.com/dozer-gallery/cletrac-oliver/

Jarcrac tool carrier. https://www.maskinisten.net/viewtopic.php?t=8751&start=75, http://metallirakennus.com/index.html, http://skogsforum.se/viewtopic.php?t=24835, https://www.maskinisten.net/viewtopic.php?f=33&t=8751&lv=0&start=15

AT-50GP-Locut from AT-50GP-Locut  from AllTrack Inc, Calgary. Company was born in 1968 for service and repair of Foremost vehicles. Now they manufacture a wide range of tracked vehicles which can be custom-built. Company was born in 1968 for service and repair of Foremost vehicles. Now they manufacture a wide range of tracked vehicles which can be custom-built. http://www.all-track.ca/tracked-vehicles/model-at-50gp-locust

Jartrac 1.9 d carrier, https://www.maskinisten.net/viewtopic.php?f=33&t=8751&lv=0&start=15

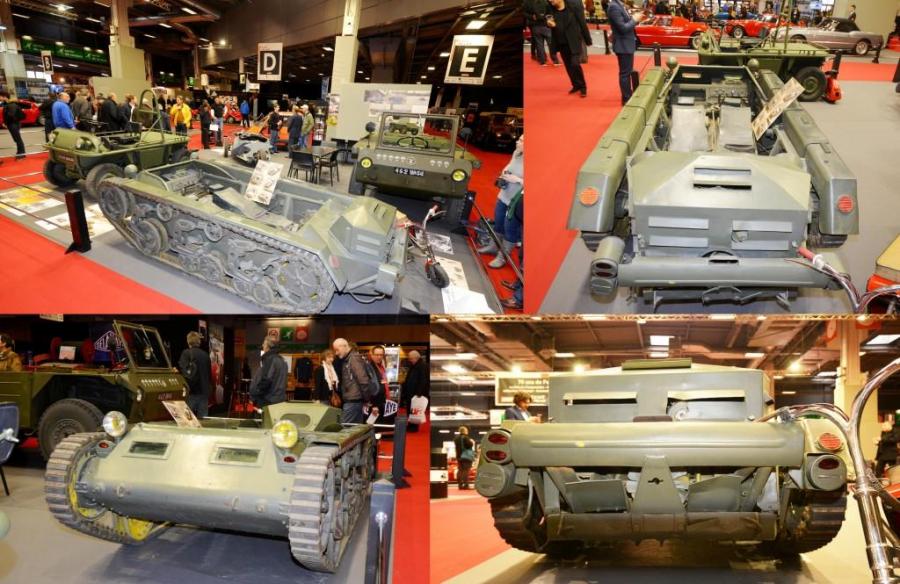

VP 90 Fouga, around 1956, of Victor Bouffort. The 2 men crew was lying down for minimum height, but top was not protected. Picture J M M at Rétromobile, Paris, 8 February 2017. http://www.unusuallocomotion.com/pages/more-documentation/21-two-tracks-rigid-vehicles-medium.html#page3

VP 90 Fouga. Picture J M M at Rétromobile, Paris, 8 February 2017. http://www.unusuallocomotion.com/pages/more-documentation/21-two-tracks-rigid-vehicles-

Amphibious device for Pisten Bully-Paana

Berti e-Trial carrier. J M M at SIMA, Villepinte, 27-02-2017

BM Bamse 230 made at Avrika by Bolinder-Munktell associated with O.S.A. (Östbergs Smidesfabrik Alfta) at 732 units between 1957 and 1964. https://www.youtube.com/watch?v=m-wl_WxoNss

BM Volvo SM460 Nalle. http://www.solhem9.se/broschyrbank_skogsbruk/BM_Volvo_SM_460_Nalle.pdf, http://www.solhem9.se/broschyrbank_skogsbruksmaskiner.htm

Energreen remote controlled carrier. J M M at SIMA, Villepinte, 27-02-2017

Fordson TEG 750, 1970s years, http://fordson.se/phpBB2/viewtopic.php?t=3840

Hubertrack HHTRACK 100 carrier. Hubertrack is a subsidiary of 2H Energy. J M M at SIMA, Villepinte, 27-02-2017 Hubertrack HHTRACK 100 (844.49 Ko)
